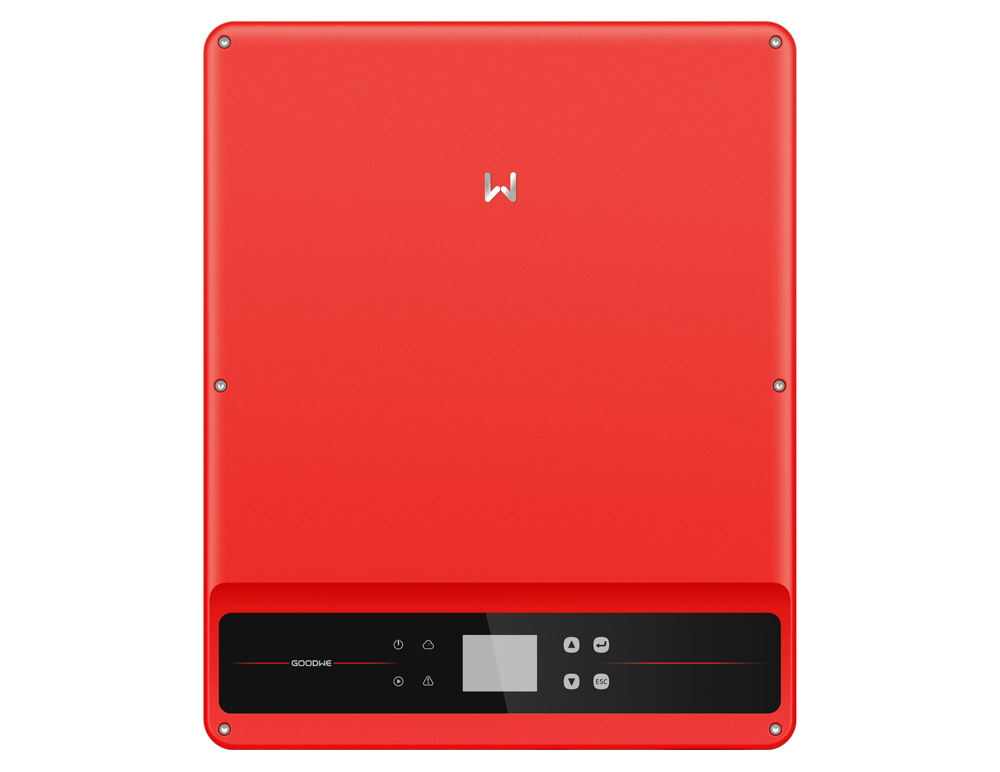

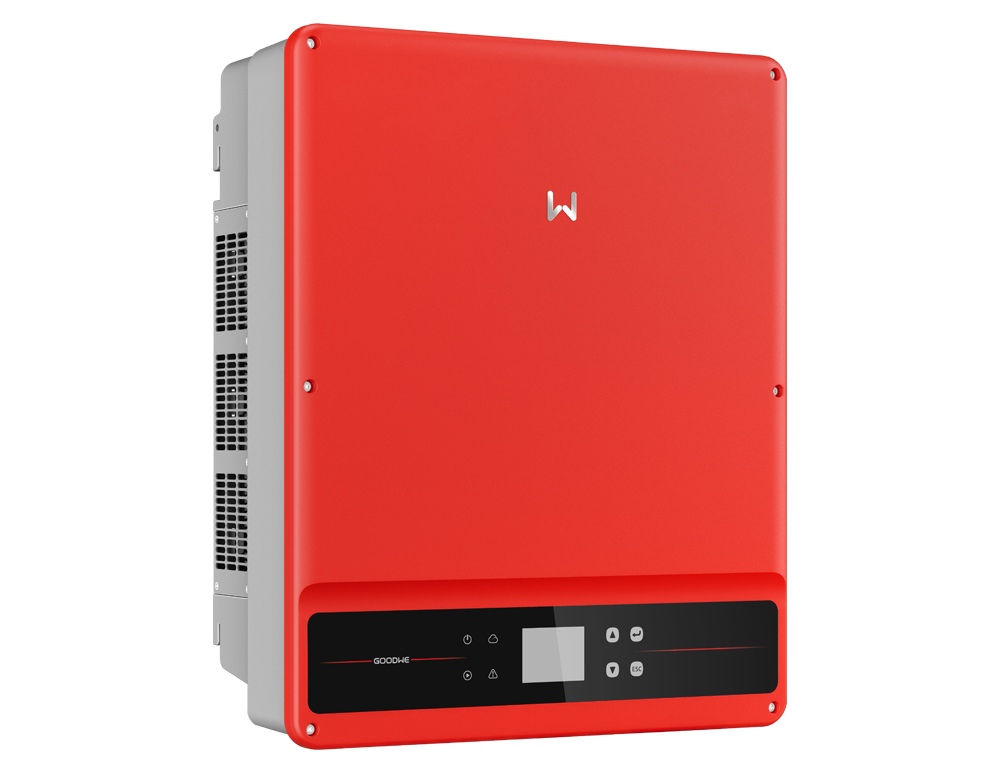

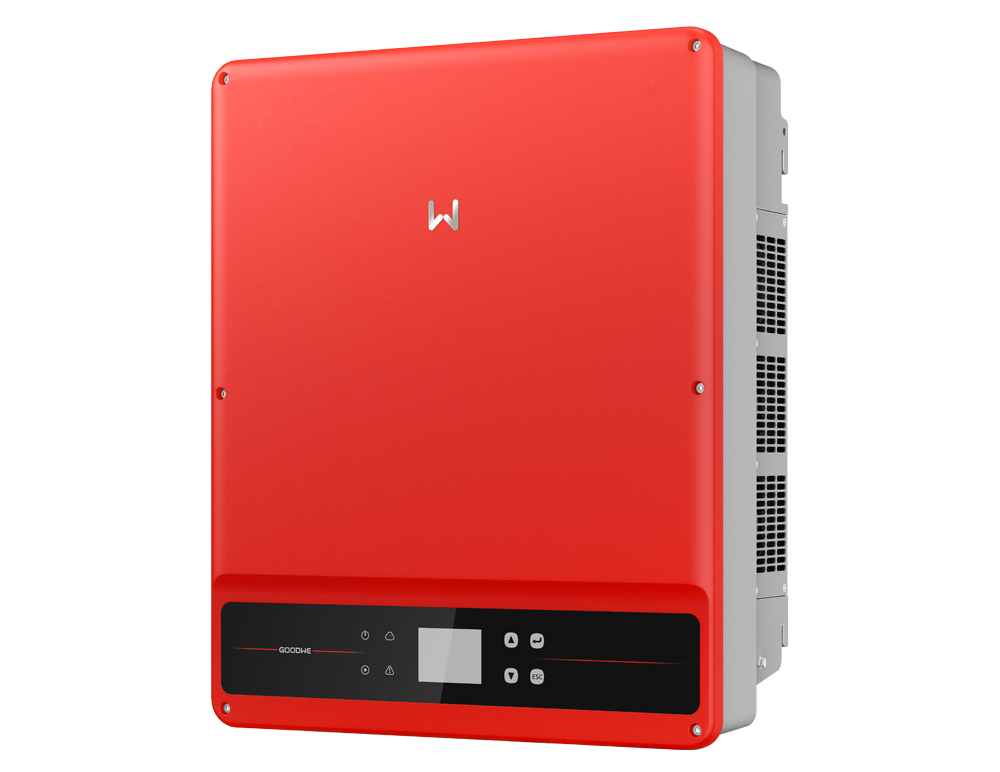

GoodWe LVSMT Series
The GoodWe LVSMT Series is a three-phase inverter designed with low-voltage power input, making it ideal for commercial installations. Built to address South American market needs, it eliminates the need for costly transformers in systems above 10 kW, reducing installation and investment costs.
- ⚡ Max. efficiency up to 98.8%
- ⚡ String-level monitoring
- ⚡ IP65 ingress protection
- ⚡ Fuse-free design (lower O&M costs)
Key Features
Friendly & Thoughtful Design
Ensures optimal performance while minimizing maintenance requirements.
- 200V–650V wide MPPT operating voltage
- Fuse-free design with no consumable parts
High Power Generation
Engineered for maximum yield with support for high-power modules and oversizing capability.
- Max. 15A DC input current per string
- 130% DC oversizing
- Compatible with high-power PV modules
Reliable Performance
Durable and efficient design ensures consistent results across diverse environments.
- Max. efficiency up to 98.8%
- String-level monitoring
- IP65 ingress protection
Datasheet
| Specification | GW35KLS-MT |
|---|---|
| Max. Input Voltage (V) | 800 |
| Max. Input Current per MPPT (A) | 30 |
| MPP Trackers / Strings per MPPT | 6 / 2 |
| Max. Efficiency | 98.0% |
| Nominal Output Voltage (V) | 220, 3L/N/PE or 3L/PE |
