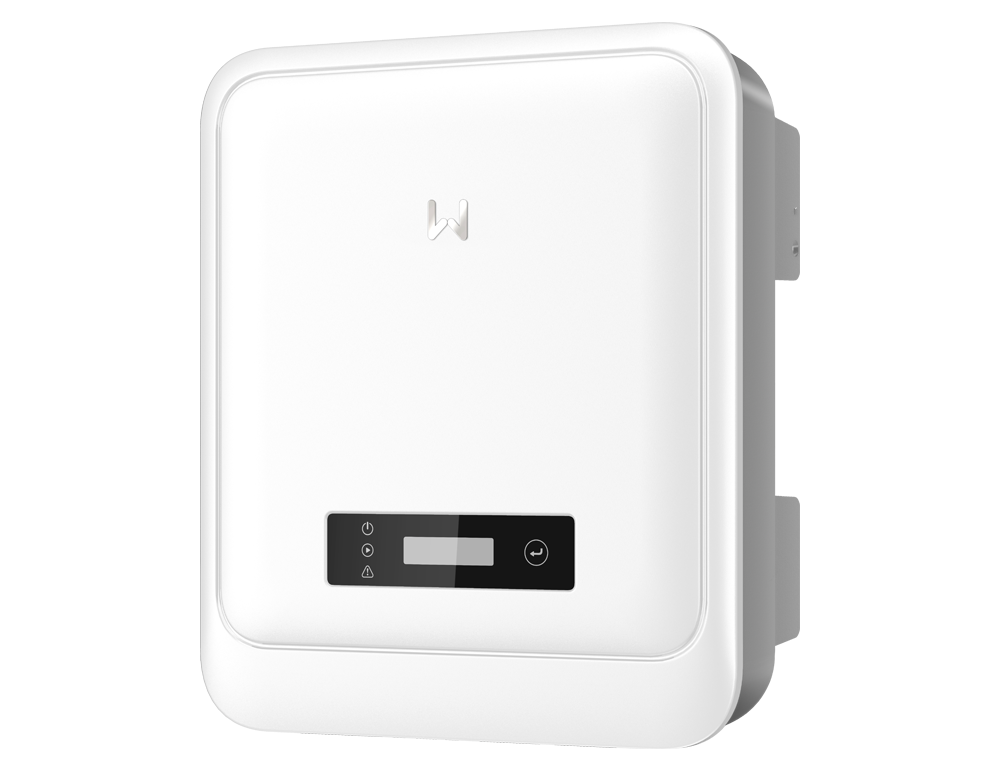

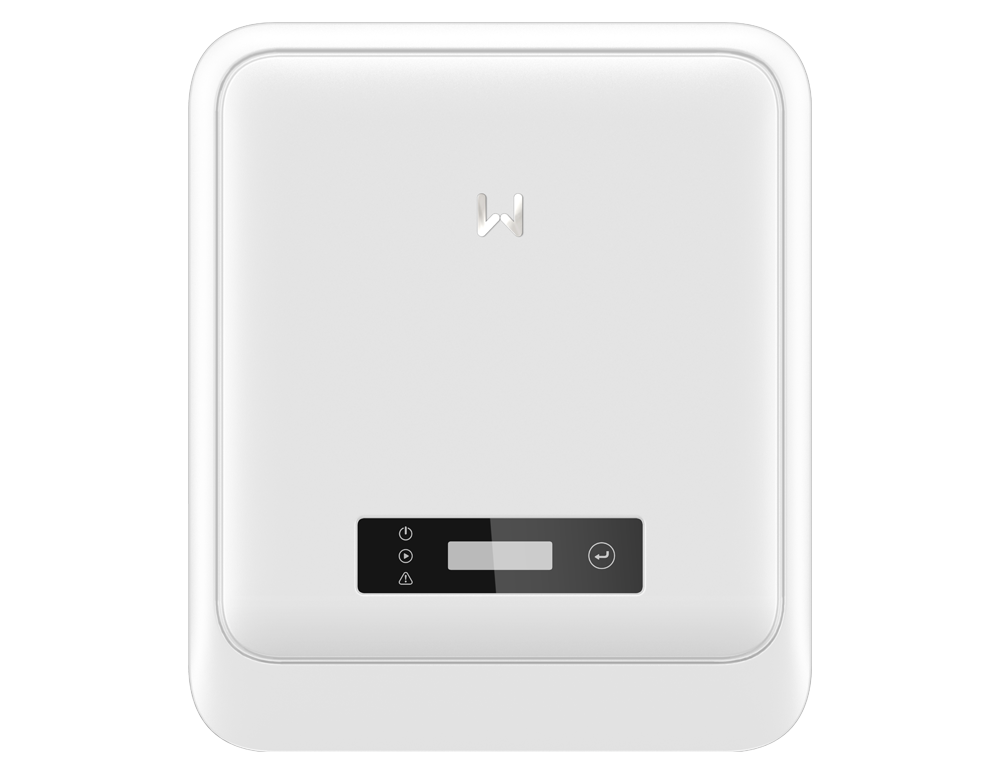

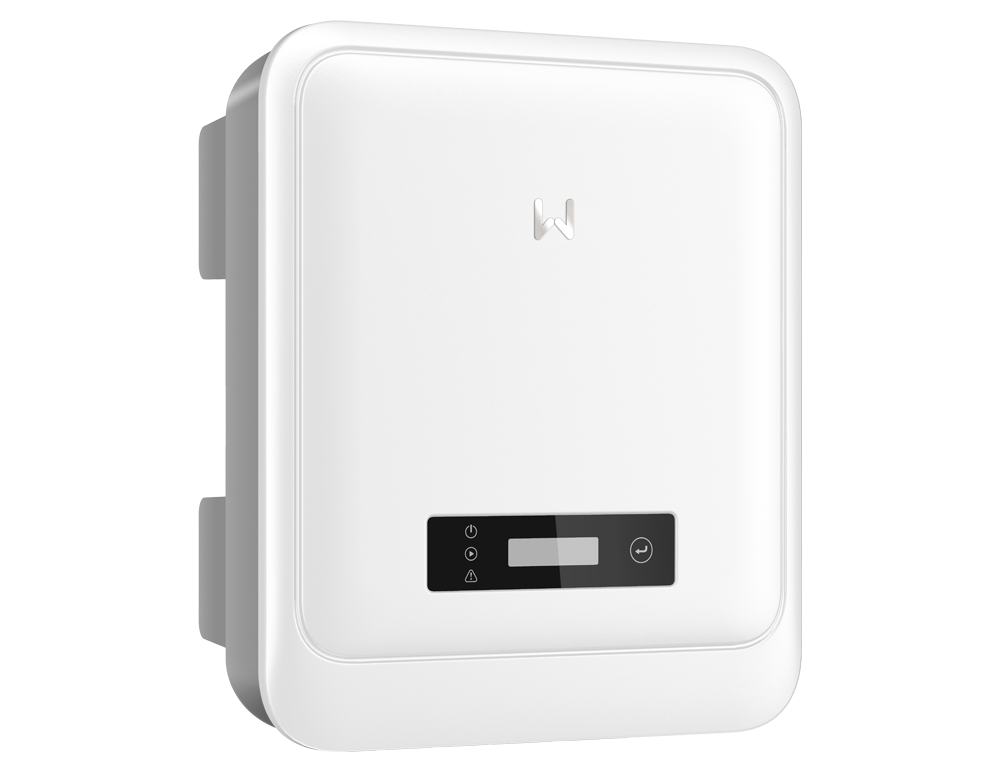

GoodWe DNS G3 Series
The GoodWe DNS G3 series inverter is specially designed for single-phase residential applications. Integrated with high-current input and DC input oversizing capabilities, it ensures optimized power generation and reliable returns. With its lighter, fanless compact design, it runs super quietly (below 25dB) while providing guaranteed safety in extreme environments.
- ⚡ 150% DC input oversizing
- ⚡ 110% AC output overloading
- ⚡ 97.9% maximum efficiency
- ⚡ <25dB fanless quiet operation
- ⚡ IP66 ingress protection
Key Features
Superb Safety & Reliability
The integrated safety features of optional AFCI, IP66 protection, and smart SPD failure alarm assure continuous safety.
- Optional AFCI
- Optional AC & DC Type II SPD
- SPD failure alarm
Smart Control & Monitoring
Supports multiple communication protocols including Modbus RTU and Sunspec, plus 24/7 load consumption monitoring with GoodWe HomeKit 1000.
- Dry contact connection
- Multiple communication protocols
- 24-hour load consumption monitoring
Optimal Generation
Compatible with high-power modules, allowing 16A input per string, 150% DC oversizing, and 110% AC overloading for maximum yield.
- 16A input current per string
- 150% DC input oversizing
- 110% AC output overloading
- 97.9% maximum efficiency
Datasheet
| Specification | GW6000-DNS-30 |
|---|---|
| Max. Input Voltage (V) | 600 |
| Max. Input Current per MPPT (A) | 16 |
| MPP Trackers / Strings | 2 / 1 |
| Weight (kg) | 13.4 |
| Nominal Output Voltage (V) | 220 / 230 / 240 |
