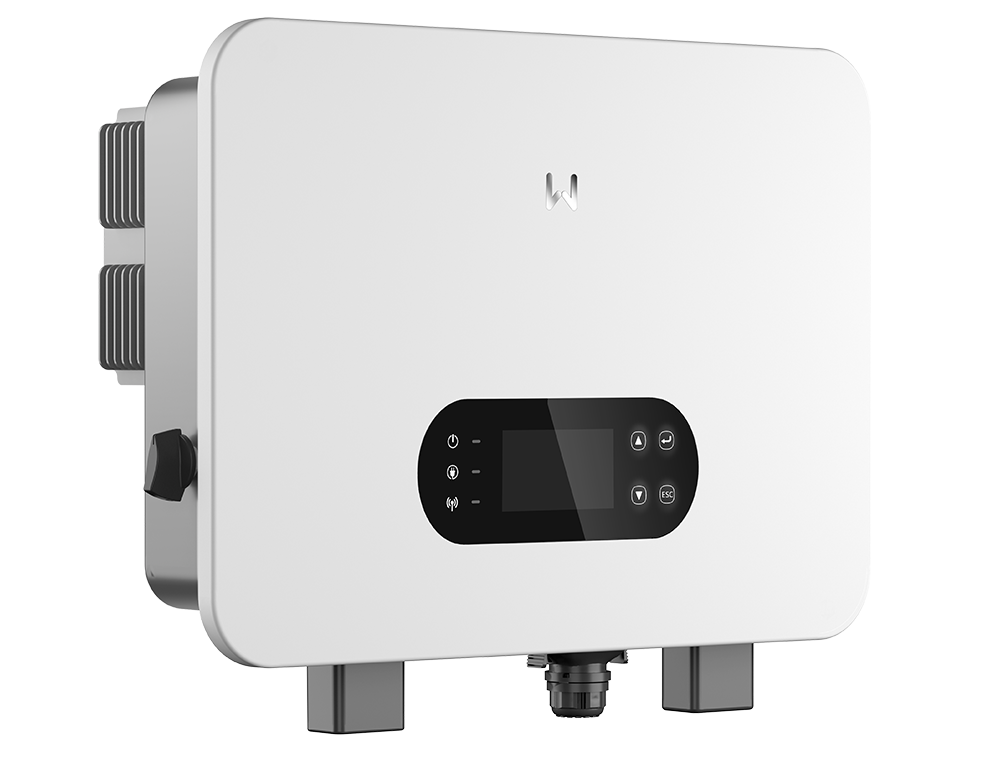

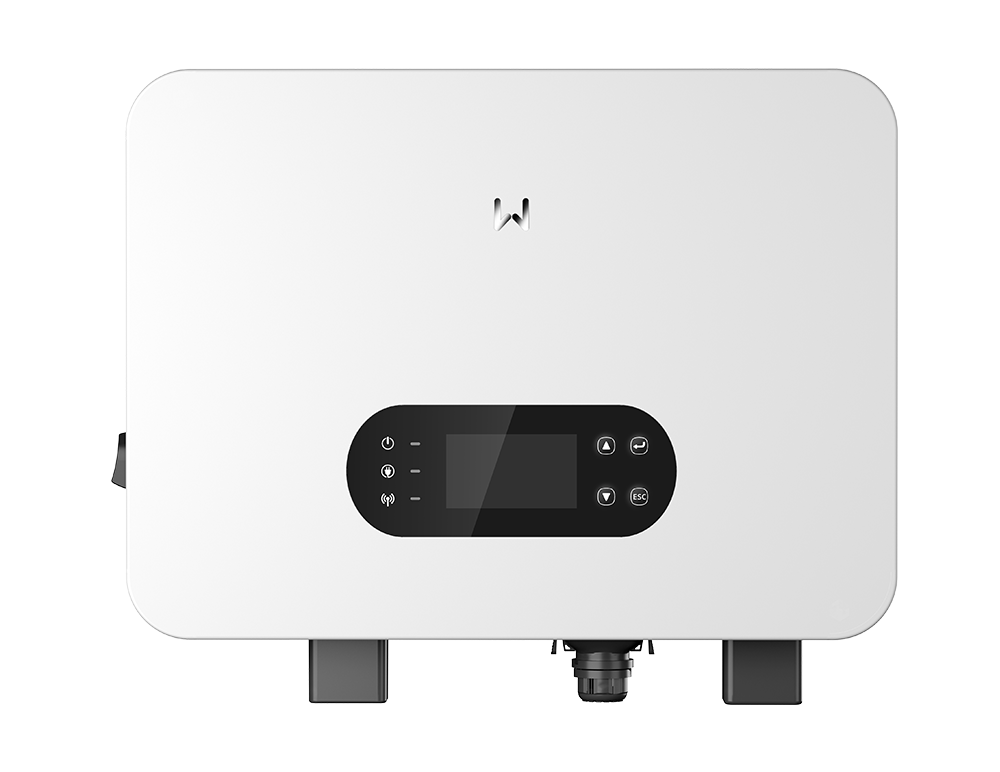

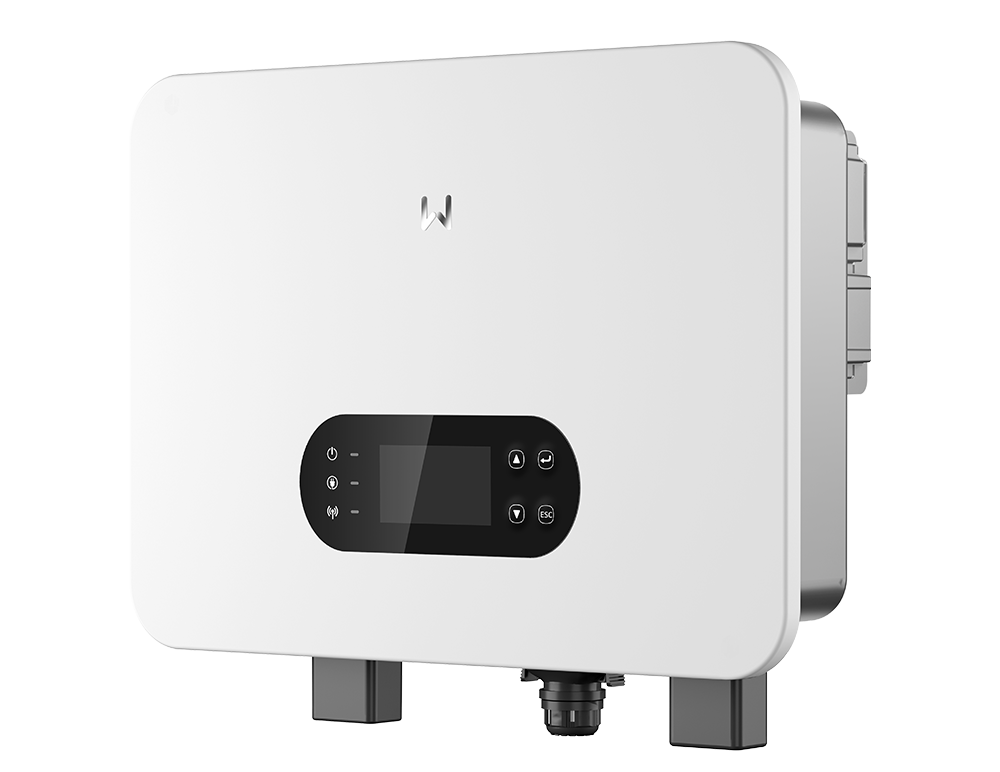

GoodWe ES Uniq Series
The GoodWe ES Uniq Series (3–12 kW) is designed for residential PV systems with seamless on-grid and off-grid compatibility. Supporting parallel connection of up to 6 inverters, it ensures flexible system expansion. The inverters feature a user-friendly touch-screen LCD and wide battery compatibility, including GoodWe’s Lynx A and Lynx U batteries.
- ⚡ 3-in-1 Port: generator, smart loads, on-grid inverter
- ⚡ Micro-grid operation with PV inverter
- ⚡ Seamless switching to backup < 4ms
- ⚡ AI-driven AFCI
- ⚡ IP66 ingress protection
Key Features
Superb Safety & Reliability
Engineered with protective features for consistent performance under harsh conditions.
- AI-driven AFCI
- IP66 ingress protection
Versatile Power Control
Supports multiple modes of operation and energy management.
- 3-in-1 Port: generator, smart loads, on-grid
- Micro-grid operation with PV inverter
- Parallel connection of up to 6 inverters
Backup & Monitoring
Provides uninterrupted energy and intuitive user interaction.
- Seamless backup switching (< 4ms)
- Touch-screen LCD display
- Compatible with GoodWe Lynx A & Lynx U batteries
Datasheet
| Specification | GW3000-ES-C10 | GW6000-ES-C10 | GW8000-ES-C10 | GW10K-ES-C10 | GW12K-ES-C10 |
|---|---|---|---|---|---|
| Battery Voltage Range (V) | 40 ~ 60 | 40 ~ 60 | 40 ~ 60 | 40 ~ 60 | 40 ~ 60 |
| Max. Charging / Discharging Current (A) | 70 / 70 | 140 / 140 | 160 / 160 | 200 / 200 | 240 / 240 |
| Max. Input Current per MPPT (A) | 20 | 20 | 32 / 16 | 32 / 32 | 32 / 32 |
| Max. Apparent Power Output to Grid (VA) | 3300 | 6600 | 8800 | 11000 | 13200 |
| Back-up Nominal Apparent Power (VA) | 3000 | 6000 | 8000 | 10000 | 12000 |
