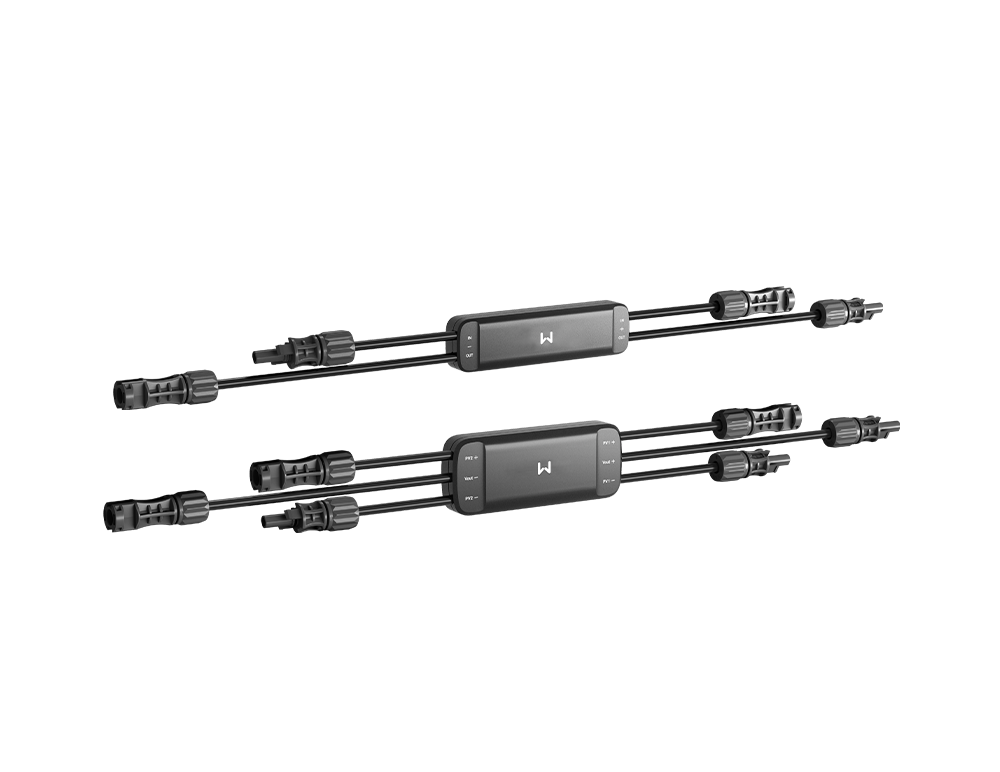

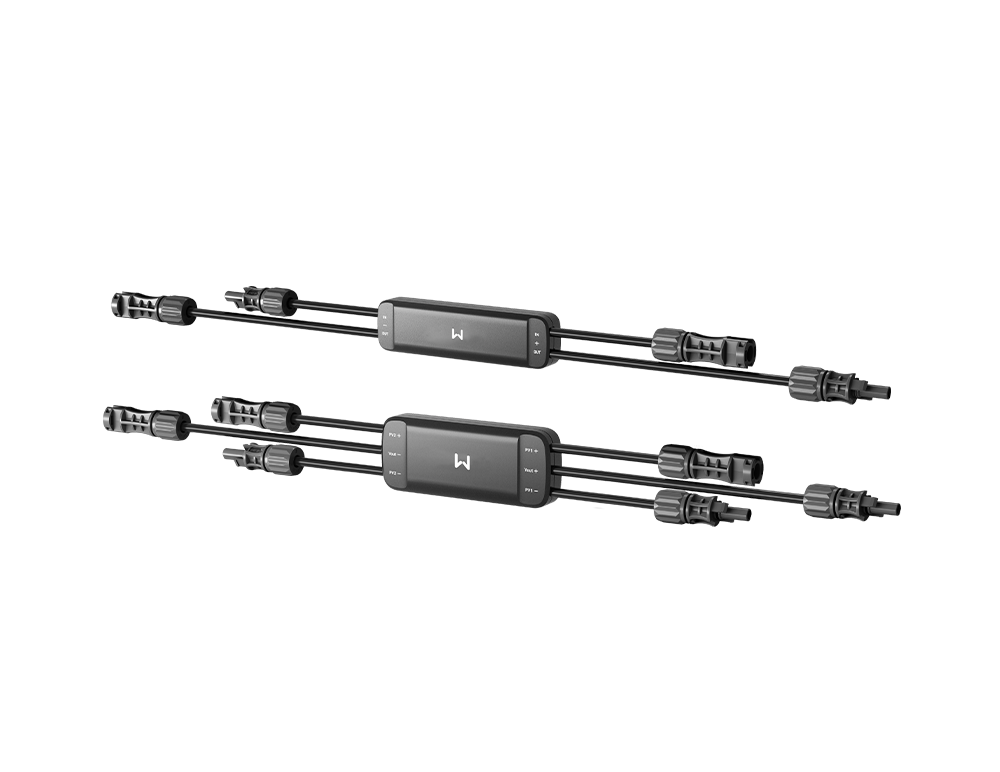

GoodWe RSD Receiver
The GoodWe RSD Receiver is a key component of the RSD 2.0 solution for PV systems, capable of connecting with one or two modules. Acting as a module-level rapid shutdown device, it enhances fire safety for solar rooftops and buildings by ensuring reliable shutdown during emergencies.
- ⚡ Plug & Play for quick installation
- ⚡ Integrated SoC for high reliability
- ⚡ PLC-based communication
- ⚡ NEC 2017/2020/2023 compliant & SunSpec certified
Key Features
Enhanced Fire Safety
Provides rapid module-level shutdown for safe emergency response.
- Complies with NEC 2017/2020/2023
- Activates when PLC signal is lost
- Supports external initiator
Reliable Operation
Ensures stable communication and continuous monitoring of module operation.
- Integrated SoC for reliability
- Supports PLC communication
- Compatible with GoodWe inverters or external transmitters
Durable & Easy to Install
Compact, rugged design with simple plug-and-play installation.
- Plug & Play setup
- Ingress protection rating IP68 / UL Type 6P
- Wide operating temperature −40 °C to +85 °C
Datasheet
| Specification | GR-B1F-20 | GR-B2F-20 |
|---|---|---|
| Mode of Communication | PLC | PLC |
| Operating Temperature Range (°C / °F) | −40 ~ +85 °C (−40 ~ +185 °F) | −40 ~ +85 °C (−40 ~ +185 °F) |
| Ingress Protection Rating | IP68 / UL Type 6P | IP68 / UL Type 6P |
| Security Certification |
NEC 2017/2020/2023 (690.12) UL 1741 CSA C22.2 No. 330 IEC / EN 62109-1 |
NEC 2017/2020 (690.12) UL 1741 CSA C22.2 No. 330 IEC / EN 62109-1 |
| Dimension (W × H × D mm / in) | 140 × 37 × 23 mm (5.51 × 1.46 × 0.91 in) |
132 × 52 × 23 mm (5.20 × 2.05 × 0.91 in) |
