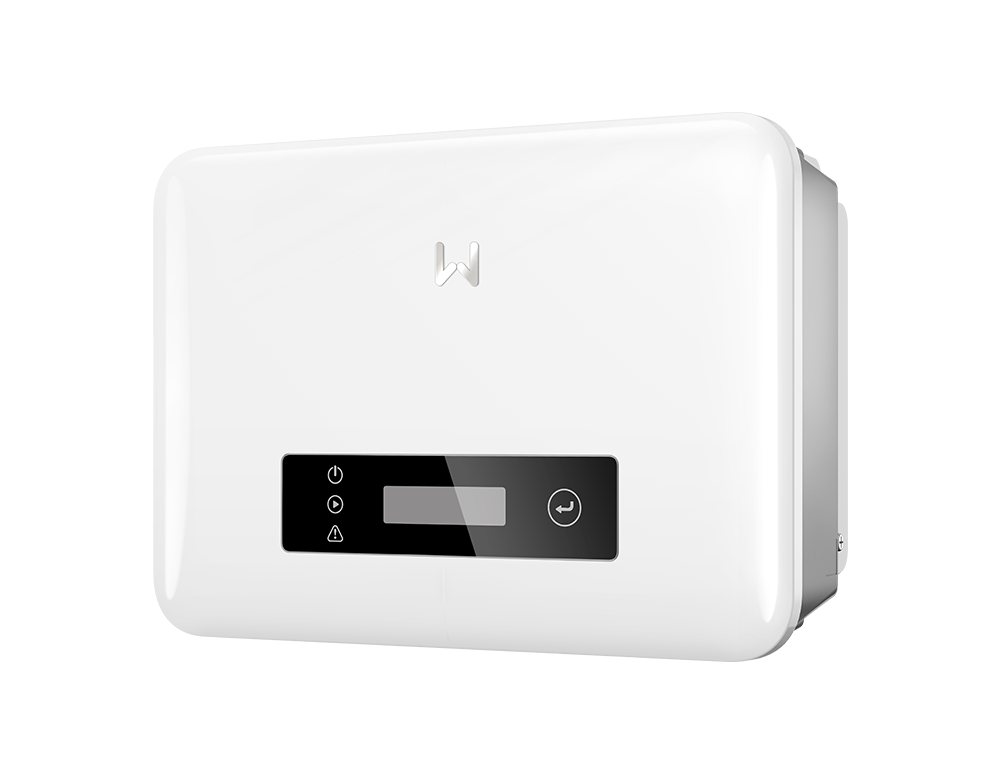

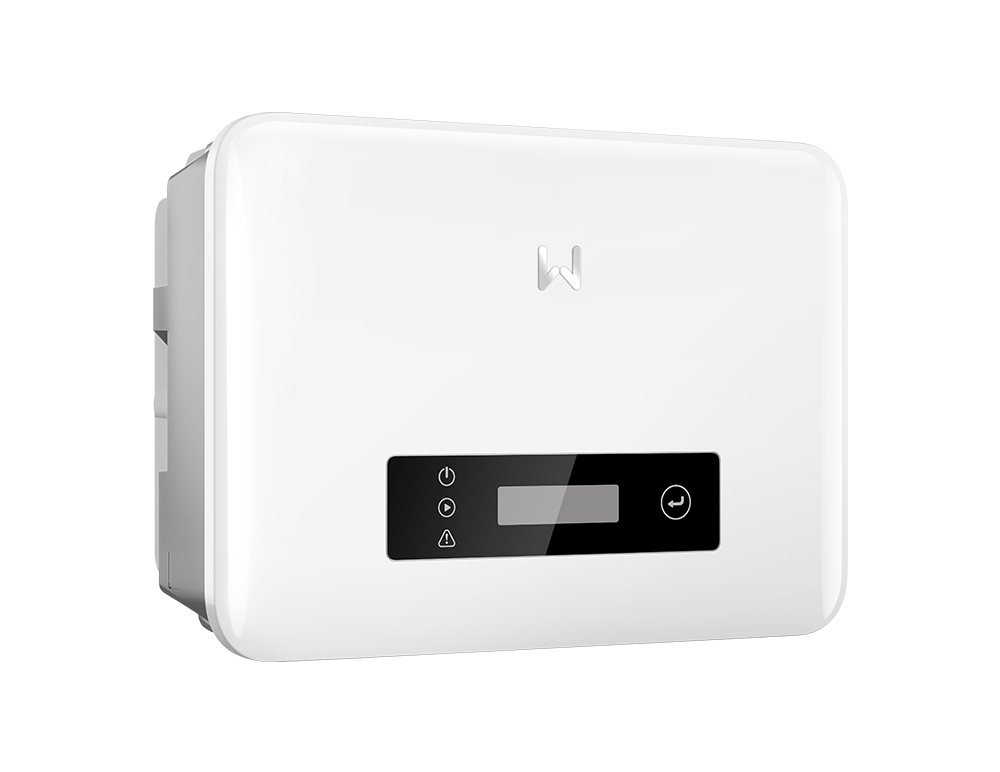

GoodWe XS G3 Series Solar Inverter
Ultra-compact residential solar inverter designed for maximum efficiency, safety, and smart control.
- ⚡ Lightweight: only 4.6kg (A4 paper size)
- ⚡ 200% DC input oversizing
- ⚡ 97.6% max efficiency
- ⚡ <20dB fanless quiet operation
- ⚡ IP66 ingress protection
Key Features
Superb Safety & Reliability
With optional AFCI, the inverter detects arc fault failures, sends alarms, and automatically breaks the circuit.
- Optional AFCI
- Optional Type II SPD (DC & AC sides)
Smart Control & Monitoring
Intelligent energy management with 24/7 load consumption monitoring via GoodWe’s smart meter.
- Export power limit
- 24/7 load consumption monitoring
Optimal Generation
With 16A per string input current and 200% oversizing capacity, the XS G3 maximizes solar capture.
- 16A input current per string
- 200% DC input oversizing
Datasheet
| Specification | GW1500-XS-30 | GW3000-XS-30 |
|---|---|---|
| Max. Input Voltage (V) | 600 | 600 |
| Max. Input Current per MPPT (A) | 16 | 16 |
| MPP Trackers / Strings | 1 / 1 | 1 / 1 |
| Weight (kg) | 4.6 | 4.6 |
| Nominal Output Voltage (V) | 220 / 230 / 240, L / N / PE | 220 / 230 / 240, L / N / PE |
