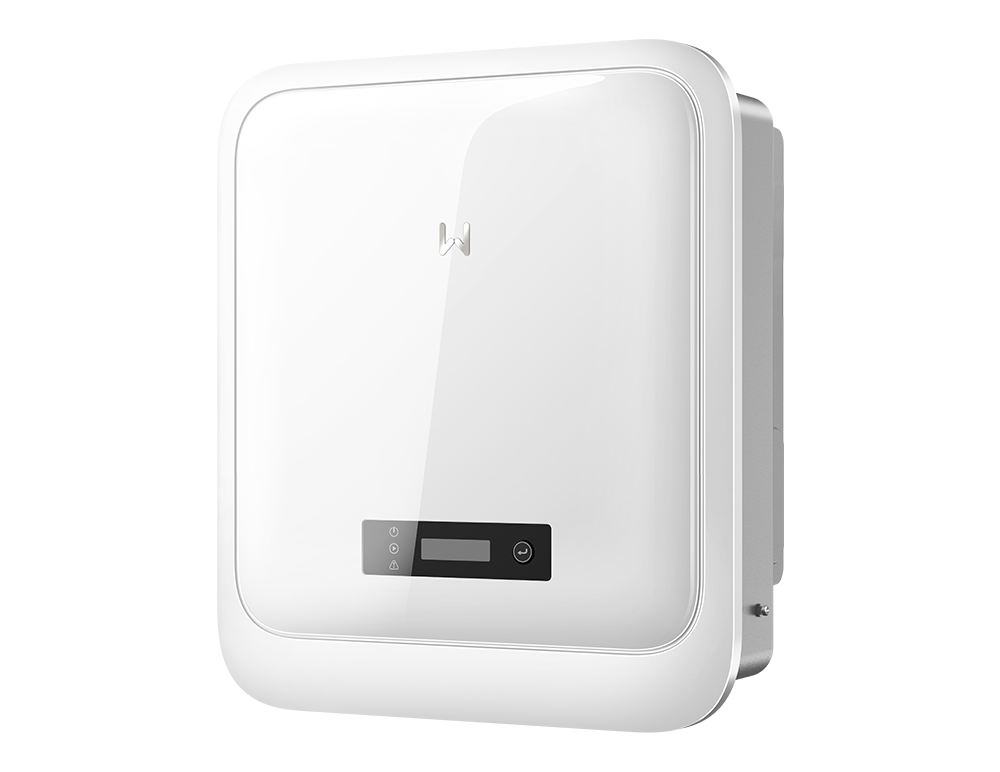

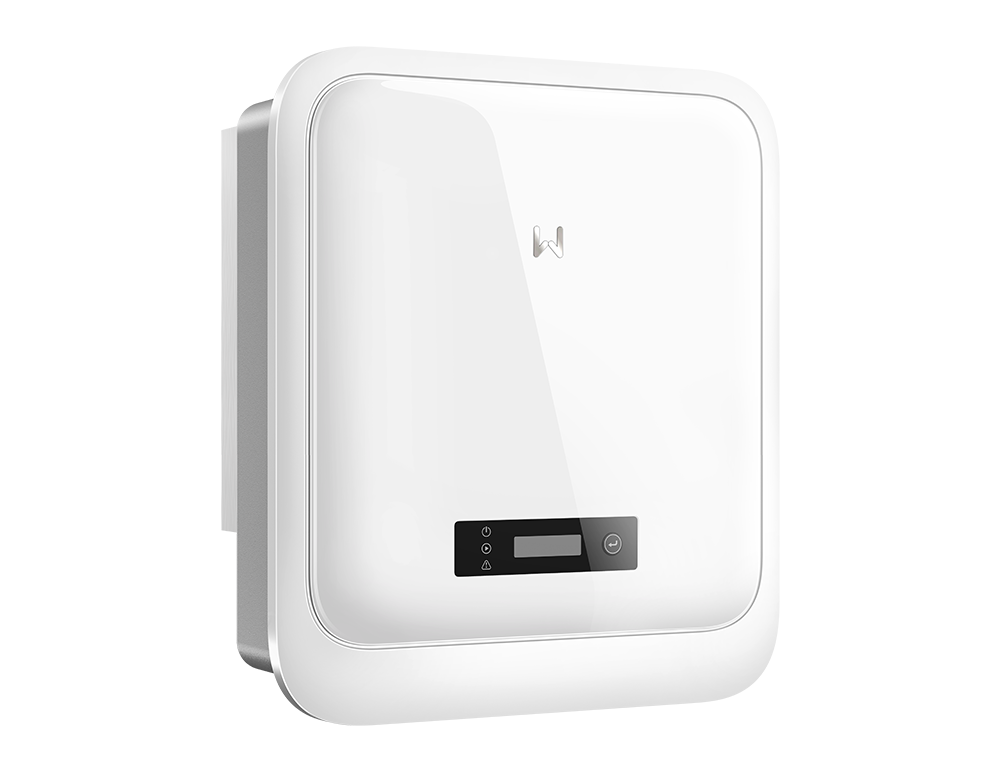

GoodWe MS G3 Series
The GoodWe MS G3 series inverter (5–10 kW) provides powerful and versatile solutions for residential applications. With 3 MPPTs, it handles complex rooftops efficiently and achieves high power yields. Its ultra-low 50V startup voltage enables earlier power generation each day, while supporting up to 20A DC input current per MPPT makes it ideal for high-power modules.
- ⚡ 3 MPPTs for complex rooftops
- ⚡ 50V ultra-low startup voltage
- ⚡ 20A DC max input per MPPT
- ⚡ PID recovery function for better module performance
- ⚡ Compact fanless design for quiet operation
Key Features
Superb Safety & Reliability
Advanced protection features for safer and more reliable operation.
- Optional AFCI & rapid shutdown
- Optional AC & DC Type II SPD
- SPD failure alarm
Smart Control
Provides intelligent monitoring and control for optimized residential usage.
- 24-hour load consumption monitoring
- Smart load control with dry contacts
- Compatible with HomeKit 1000 / GM10001
High Power Generation
Ensures maximum solar harvest with low startup voltage and high input current support.
- 3 MPPTs for complex rooftops
- 50V ultra-low startup voltage
- 20A input current per MPPT
- PID recovery function
Datasheet
| Specification | GW6000-DNS-30 |
|---|---|
| Max. Input Voltage (V) | 600 |
| Max. Input Current per MPPT (A) | 16 |
| MPP Trackers / Strings | 2 / 1 |
| Weight (kg) | 13.4 |
| Nominal Output Voltage (V) | 220 / 230 / 240 |
